  • Product Name:

    CNC ROUTER ENGRAVER-mill PCB engraving Cmode fmuser3629B

  • Categories:Other
  • Date:2011-03-07
  • *spindle grinding spindle hanging 200W (standard), fast (up to 20,000 rev / min) and high efficiency. * gantry mobile, rugged, small inertia, dynamic performance, a long time without deformation, so that more precise positioning accuracy * signs pr ...
Sample/Wholesale
Price
Shipping
Carrier
Buy it Now
1 pcs sample
699 USD
/pcs
180 USD
DHL/UPS 7-10days

2 pcs
650 USD
/pcs
290 USD
DHL/UPS 7-10days

Product Description

CNC ROUTER ENGRAVER-mill PCB engraving Cmode  czh 3629B

czh3629Bmain

/product_repository/upload/128/289/714/149/1282897141499_hz-fileserver2_2217877.jpg/product_repository/upload/128/289/714/642/1282897146426_hz-fileserver2_2217900.jpg/product_repository/upload/128/289/715/574/1282897155749_hz-fileserver2_2217948.jpg/product_repository/upload/128/289/716/241/1282897162419_hz-fileserver2_2217980.jpg



Features

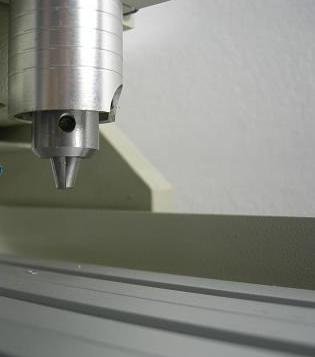

*spindle grinding spindle hanging 200W (standard), fast (up to 20,000 rev / min) and high efficiency.
* gantry mobile, rugged, small inertia, dynamic performance, a long time without deformation, so that more precise positioning accuracy
* signs produced not only fine carving without jagged, smooth contours clear bottom
*  AXIS, imported drive screw, so that positioning is more accurate, more precise duplication of processing
* full support for MACH3, Wentai, TYPE CNC software systems such as common
Performance parameters
NO. Performance performance parameters
A maximum stroke 180mm X travel
Y travel 250mm
Z stroke 30mm
2 platform size 270x350mm
3 Resolution 0.0125mm
4 Structure of the table structure of aluminum alloy sheet (with trapezoidal slots)
5 machines from the consumption of power <300W
Maximum air speed of 6 axis line speed 1000mm/min
Maximum engraving speed 800mm/min
7 Spindle Power consumption 200W
Spindle speed 5000-20000r/min
8 tool diameter 0.3-3.175Step + 8 sub-operating mode

9 voltage AC220V/110V (may be)
10 G code to run command
11 operating system WIN2000/XP
12 Net weight 17Kg
13 GW 20Kg

CNC router Drivers download:

www.czhfmtransmitter.com/download/TS2011.0.rar
